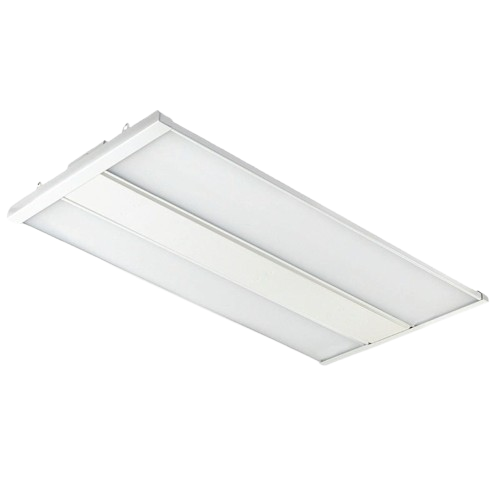

High-Output LED Linear High Bay Fixtures (5700K)
High-Output LED Linear High Bay Fixtures (5700K)
Lighting

High-Output LED Linear High Bay Fixtures (5700K)

LED Linear High Bays deliver a powerful, focused light for high ceiling areas like gyms, storage facilities, and warehouses. Available in 110W, 165W, and 220W options for different lighting needs.

LED linear high bays are designed for large indoor spaces where fixtures need to deliver light from higher mounting points. Their linear format offers more light distribution along the length of the space and provides more light to the floor, which is useful for aisles, work areas, and open areas.

The 110W, 165W, and 220W models allow businesses to choose the light output and size of the area required, depending on the height of the ceiling and the size of the business. This makes them ideal for commercial buildings with high ceilings, including warehouses, storage spaces, gymnasiums, and more.

Correct fixture spacing and fixture mounting height contribute significantly to consistent coverage for larger sites. Choosing the right linear high bay lighting can help reduce dark areas while providing the illumination needed for everyday work and movement.

Product Highlights

  • 110W, 165W & 220W options
  • Linear high bay design
  • High-output LED illumination
  • Designed for high-ceiling spaces
  • Focused downward light distribution
  • Suitable for large indoor areas
  • Energy-efficient LED technology
  • Ideal for warehouse and storage lighting
  • Suitable for gyms and commercial facilities
  • Available in multiple output options
110W LED 165W LED 220W LED
Power Wattage 110W 165W 220W
Efficacy (Lm/Watt) 145LM/Watt 145LM/Watt 145LM/Watt
Input Voltage 100-277V 100-277V 100-277V
Lumens 15950 23925 31900
Kelvins 5700K 5700K 5700K
Certification UL/DLC UL/DLC UL/DLC
Life Span 50,000 Hours 50,000 Hours 50,000 Hours
Photocell With/Without With/Without With/Without
Size 2FT 2FT 2FT & 4FT
Warranty 5 Years 5 Years 5 Years
