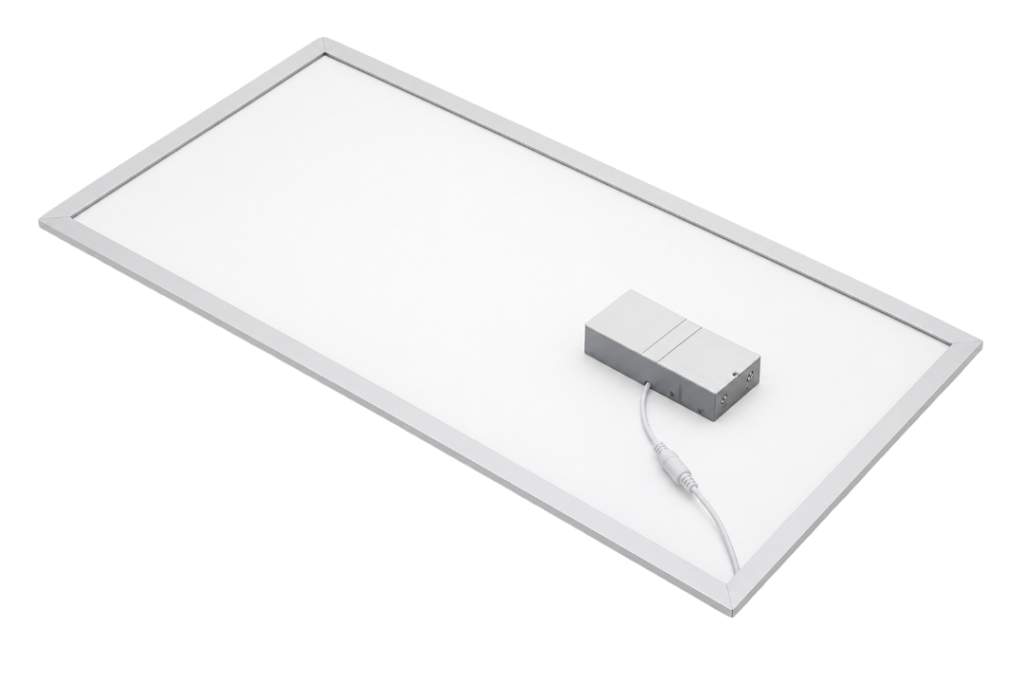

LED T-Bar Panels (40W/55W) | Commercial LED Lighting
LED T-Bar Panels provide clean, even lighting for offices, schools, retail stores, hospitals, and other commercial interiors. Available in 40W and 55W options for different lighting needs.
Available in compatible T-bar ceiling systems, these LED T-Bar Panels add a clean and modern aesthetic to any commercial space. They offer a wide, even light distribution over work surfaces, but without the bulk of standard fixtures.
The 40W and 55W options give businesses flexibility when planning lighting for different room sizes and layouts. They are suitable for offices, classrooms, retail, healthcare, and other indoor spaces where consistent overhead lighting is essential.
LED technology also provides an efficient alternative to older lighting systems, helping businesses manage energy use while reducing routine maintenance. They are a simple panel format and are ideal for new installations or lighting upgrades.
Product Highlights
- 40W & 55W options
- T-bar ceiling-compatible design
- Slim, low-profile appearance
- Bright, uniform illumination
- Energy-efficient LED technology
- Long-lasting, low-maintenance performance
- Clean, modern ceiling appearance
- Suitable for commercial interiors
- Ideal for new installations and upgrades
| – | 2×2, 40W | 2×4, 55W |
|---|---|---|
| Watt | 40W | 55W |
| Lumens | 4800 lm | 6600 lm |
| CCT | 5000K | 5000K |
| Power Factor | ≥0.95 | ≥0.95 |
| Efficacy | 120 lm/W | 120 lm/W |
| CRI | >80 Ra | >80 Ra |
| Dimensions | 2×2 ft | 2×4 ft |
| Dimmable | 0-10V | 0-10V |
| THD | ≥10% | ≥10% |
| Beam Angle | 120° | 120° |
